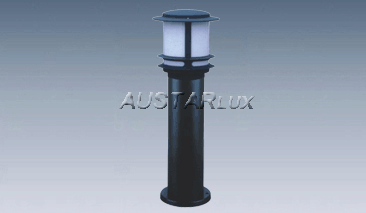

AU5721 luminaire is made of 3 main parts.

THE DOME in cast aluminium fixed on the CAP.

THE CAP made of embossed aluminium sheet, assembly is held to the base flange by means of 3 aluminium piping. 3 louvers in the middle of 3 aluminium piping

THE BASE FLANGE in cast aluminium, TOP mounting for 76mm(Mounting 76mm-Male)

THE DIFFUSER is made of clear or opal methcrylate tube..

Painted by polyester powder, color on request.

PROTECTION DEGREE:

Optical block IP54

SHOCK ENERGY:

2 Joules (methacrylate tube)

CLASS I
