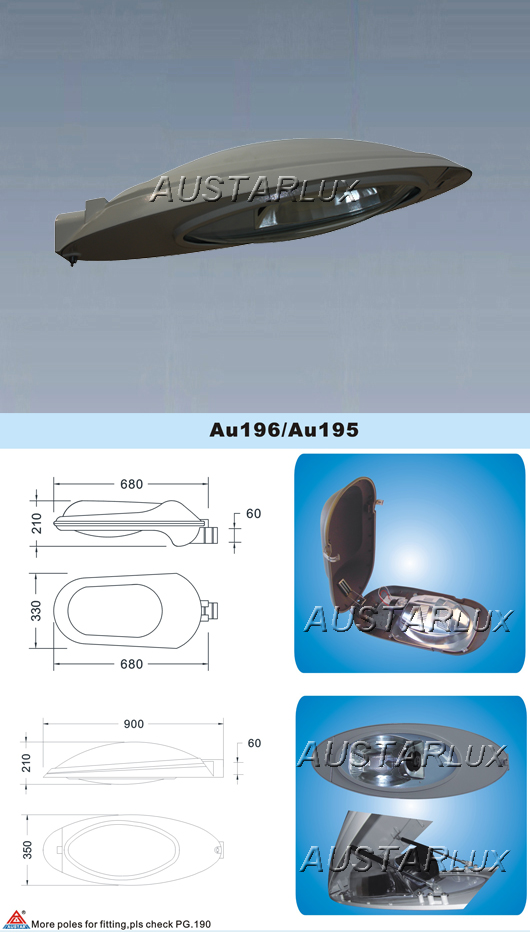

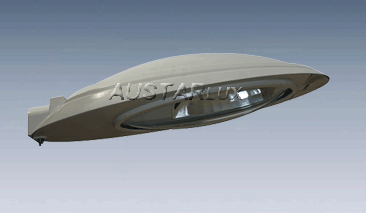

AU196 luminaire is made of 4 parts:
THE TOP COVER made of die casting aluminium insures the overwhole protection of the luminaire.
THE BODY made of die-cast aluminium. The frame is attached by means of a hinge and 1 S/S screw under the body, assureing and easy access to the control gear and lamp.
THE OPTICAL SYSTEM It comprises a pure refined aluminium reflector,stamped out in one piece and polished which is attached to the frame.A flat clear temptered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
THE ADAPTOR made of die-cast aluminium, it can change angle.
Painted by polyester powder,color on request.
PROTECTION DEGREE:
Optaical block IP65
