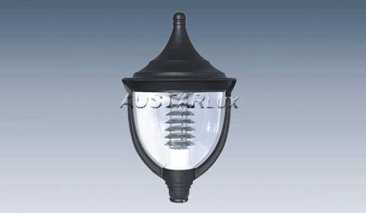

AU5731 luminaire is made of 3 parts:
THE CAP made of spun aluminium sheet,once removed the cap and control gear are easily attained.
THE FRAME of the luminaire is made up of 2 parts,2 ribs in cast aluminium fixed to the post adaptor,mounting for a 76mm held with 3 stainless steel screws.
THE OPTICAL BLOCK is made up of 3 parts sealed together so as to obtain a high degree of protection.
A control gear on the aluminium reflector.
A control bowl in methacrylate.
The louvers anodized.
Painted by polyester powder, color on request.
PROTECTION DEGREE:
Optical block IP65
SHOCK ENERGY
2 Joules(methacrylate bowl)
CLASS I
CLASS II. on request
