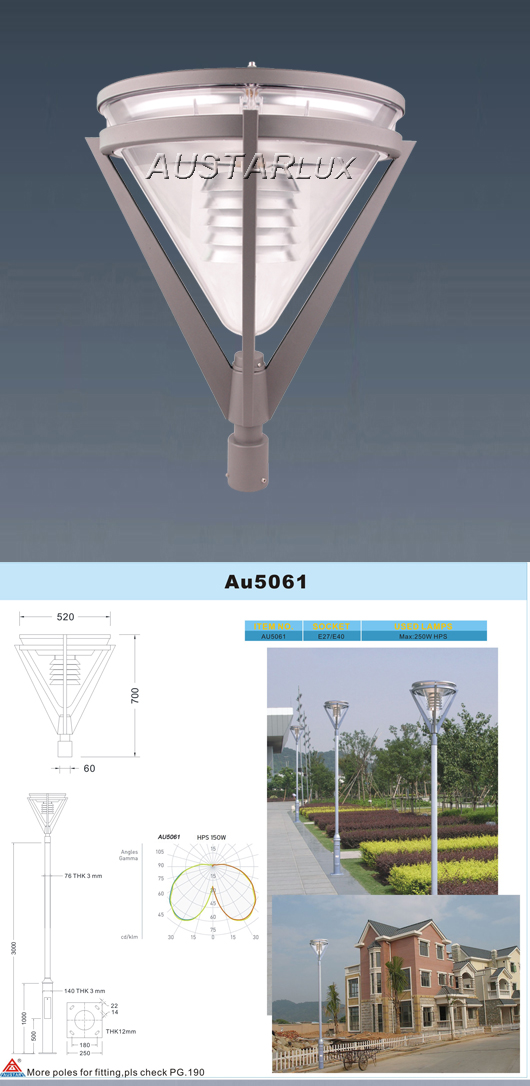

AU5061 luminaire is made of 3 parts.

THE CAP made of spun aluminium sheet, thickness: 2mm, once removed the cap and control gear are easily attained.

THE FRAME of the luminaire is made up of 3 parts. A ring in die-cast aluminium supported by 4 arms in die-cast aluminium to the base flange. Mounting for a 60mm held with 2 rows of set stainless steel screws.

THE OPTICAL BLOCK is made up of 3 parts sealed together so as to obtain a high degree of protection.

A control gear cover with lamp holder cap.

A conical bowl in opal or clear methacrylate, thickness 8mm, to be indicated on the order.

A reflector made in spun aluminium sheet, anodized.

Painted by polyester powder, color on request.

PROTECTION DEGREE:

Optical block IP66.

SHOCK ENERGY:

2 Joules (polycarbonate bowl)

70 Joules (ME RESIST bowl) on request.

CLASS I

CLASS II
