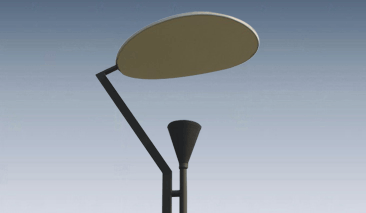

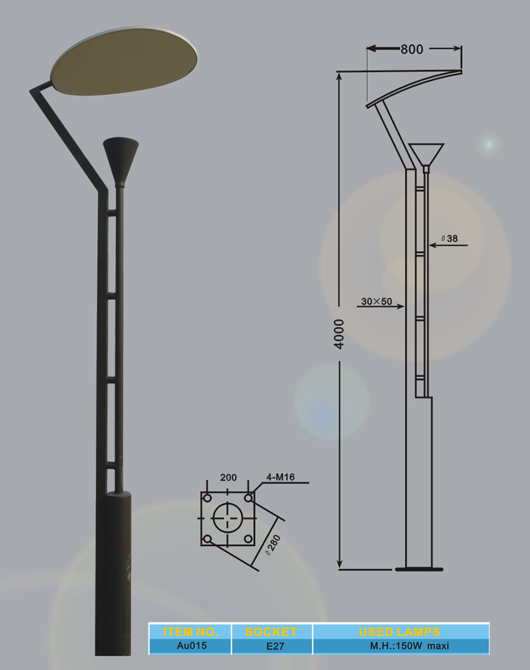

015  luminaire is made of 3 main parts:

THE REFLECOTR  made of fiberglass

THE OPTICAL SYSTEM made of fiberglass reflector is closed by tempered glass sealed inside a cover plate in cast aluminium which is in turn fastned to the frame by means of 3 S/S bolts.A silicon seal assures the high degree of protection.

THE POLE is Hot Dip Galvanized steel pole,thickness on request.

Painted by polyester powder,color on request.

PROTCTION DEGREE:

Optical block IP65

SHOCK ENERGY

20 Joules(Tempered glass)

CLASS I

CLASS II on request
