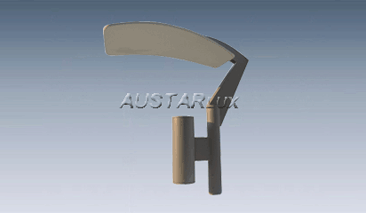

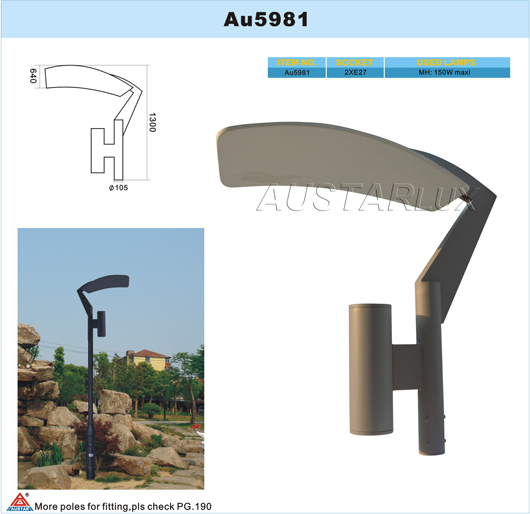

AU5981  luminaire is made of 3 mail parts:

THE REFLECOTR in fiberboard,painting white color,the plastic shine reflector anodized,fixed in the fiberboard reflector.

THE FRAME  is die cast aluminium,held to the base flange.

THE OPTICAL SYSTEM  made of aluminium body is close by 2 tempered glass sealed inside a cover plate in cast alminium which is in turn fastned to the frame.A silicon seal assures the high degree of protection,the light can be spot up down.

Painted by polyester powder,color on request.

PROTCTION DEGREE:

Optical block IP66

SHOCK ENERGY

20 Joules(tempered glass)

CLASS I

CLASS II on request

ITEM NO.	SOCKET	USED LAMPS
AU5981	E27	MH: 150W maxi
