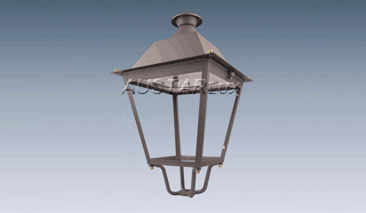

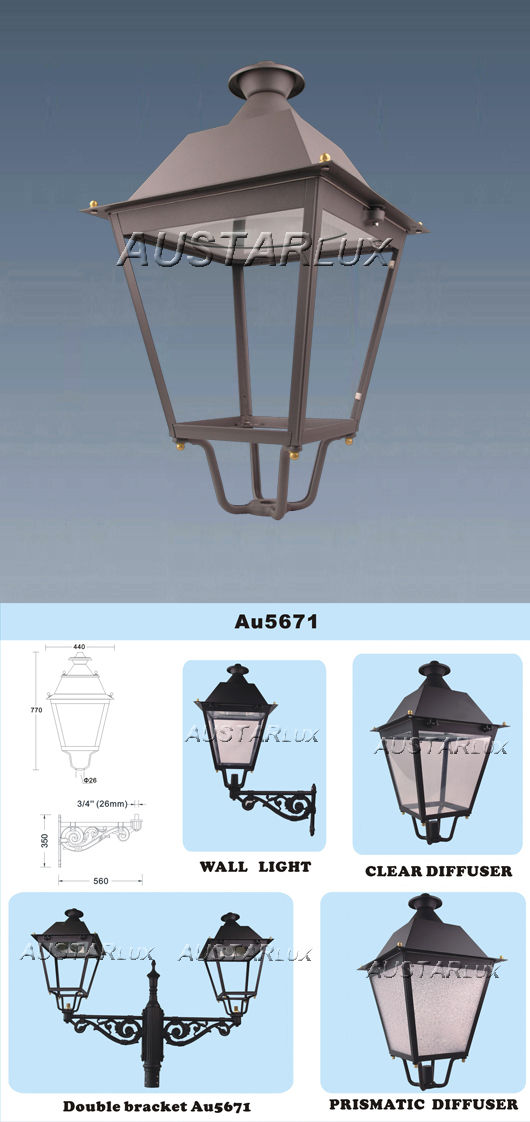

AU5671 luminaire(VILLA LUMINAIRE) is made of 5 parts(AU5671/01,AU5671/02,AU5671/03,AU5671/04,AU5671/05.

THE FINIAL TOP is made of INJECT aluminium body fixed to the dome by means of 1 steel piping.

THE DOME is made of INJECT aluminium body,Once removed the dome and control gears are easily attained.

THE FRAME of the luminaire is made up of 3 aluminium INJECT parts, A ring in aluminium sheet supported by 4 ribs in aluminium sheet fixed to the base flange. Mounting for 26mm held..

THE OPTICAL BLOCK is make up of 3 parts sealed together so as to obtain a high degree of protection.

A control gear on the CDG steel sheet, once removed the dome and the finial top, the control gear are easily attained.

The diffuser in Opal or Clear PC diffuser,Tempered glass on request.

A reflector made in embossed CDG steel sheet (IP33), OR the reflector in pure aluminium, stamped out in one piece and anodized which is fixed on the CDG steel sheet and a clear tempered glass in sealed directly to the reflector by means of a silicon seal insuring a high degree of protection (IP65), the control gear is placed around the reflector around the reflector.

THE BASE FLANGE in cast aluminium, top mounting for 26mm.

Painted by polyester powder, color on request.

PROTECTION DEGREE:

IP33, Optical block IP65 on request.

SHOCK ENERGY:

2 joules(PC diffuse)

CLASS I

CLASS II on request
