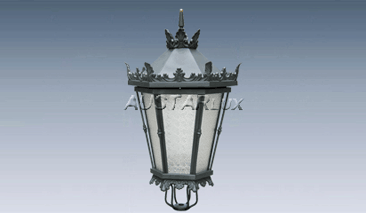

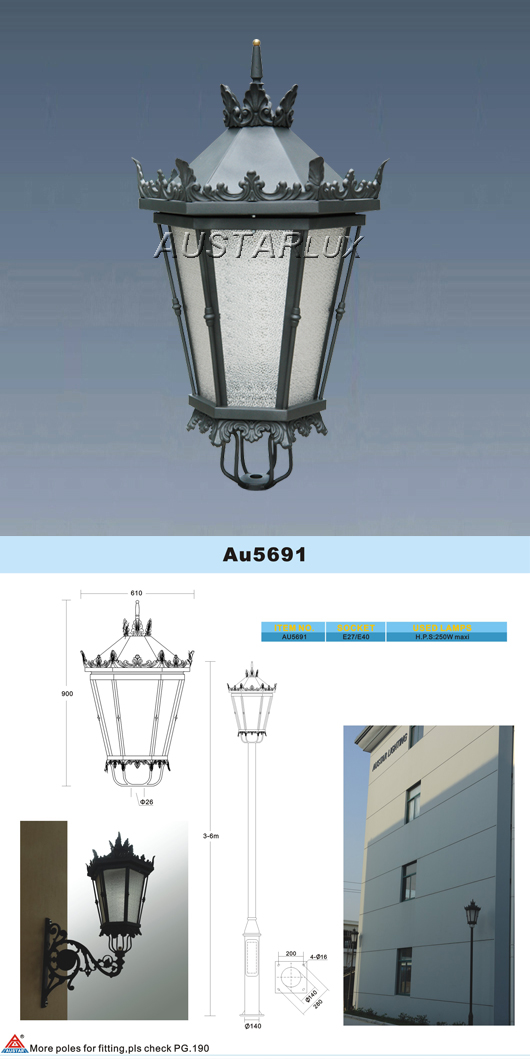

AU5691 luminaire(IMPERIAL LUMINAIRE) is made of 5 parts.

THE FINIAL TOP is made of embossed aluminium sheet fixed to the dome by means of 1 cooper piping.

THE DOME in pure aluminium, stamped out in one piece, 6pcs fixed together. once removed the dome and control gears are easily attained.

THE FRAME of the luminaire is made up of 3 parts, A ring in aluminium sheet supported by 6ribs in aluminium piping fixed to the base flange. Mounting for 26mm held..

THE OPTICAL BLOCK is make up of 3 parts sealed together so as to obtain a high degree of protection.

A control gear on the CDG steel sheet, once removed the dome and the finial top, the control gear are easily attained.

The diffuser in frost methacrylate.

A reflector made in embossed CDG steel sheet (IP33), OR the reflector in pure aluminium, stamped out in one piece and anodized which is fixed on the CDG steel sheet and a clear tempered glass in sealed directly to the reflector by means of a silicon seal insuring a high degree of protection (IP65), the control gear is placed around the reflector around the reflector.

THE BASE FLANGE in cast aluminium, top mounting for 26mm.

Painted by polyester powder, color on request.

PROTECTION DEGREE:

IP33, Optical block IP65 on request.

SHOCK ENERGY:

2 Joules (methacrylate diffuse)

CLASS I

CLASS II on request.

ITEM NO.	SOCKET	USED LAMPS
AU5691	E27/E40	H.P.S: 250W maxi
