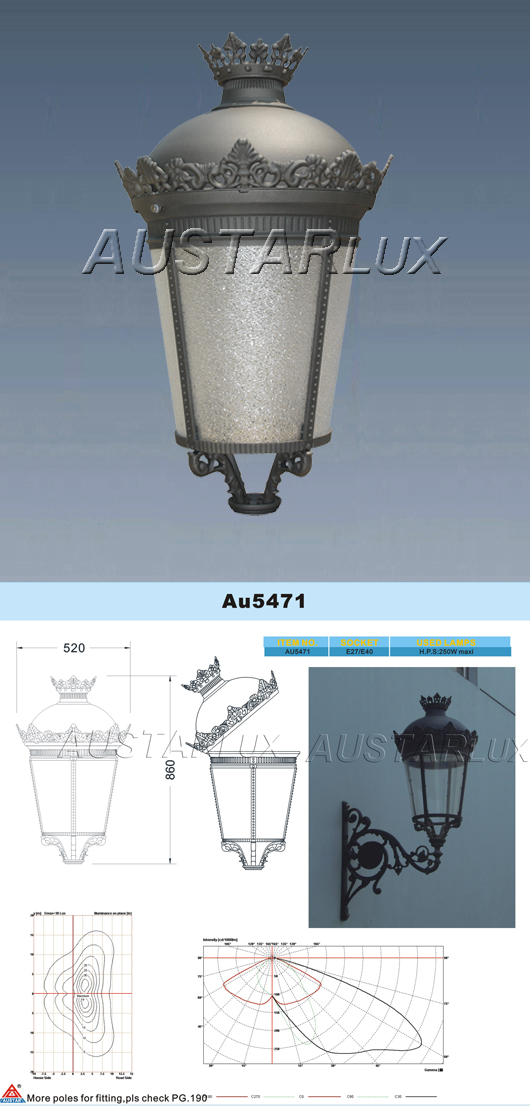

AU5471 luminaire(PALACIO LUMINAIRE) is made of 5  parts.

THE CROWN in casting aluminium fixed to the dome.

THE DOME is made of embossed aluminium sheet, assembly is held to the CDG steel reflector by means of 1 aluminium steel mounting. Once removed the dome and control gear are easily attained.

THE FRAME of the luminaire is made up of 3 parts, A ring of crown in cast aluminium supported by 4 ribs in cast aluminium fixed to the base flange. Mounting for 26mm held with 2 stainless steel screws.

THE OPTICAL BLOCK is make up of 3 parts sealed together so as to obtain a high degree of protection.

A control gear on the CDG steel sheet, once removed the dome and top crown the control gear are easily attained.

The diffuser in frost methacrylate.

A reflector made in embossed CDG steel sheet(IP33), OR the reflector in pure aluminium, stamped out in one piece and anodized which is fixed on the CDG steel sheet(IP65), the control gear is placed around the reflector.

THE BASE FLANGE in cast aluminium, top mounting for 26mm.

Painted by polyester powder, color on request.

PROTECTION DEGREE:

Optical block IP33 or IP65 on request.

SHOCK ENERGY:

2 joules(polycarbonate diffuse)

CLASS I

CLASS II.

ITEM NO.	SOCKET	USED LAMPS
AU5471	E27/E40	H.P.S: 250W maxi
